Bravox Buyout 3-1/2" and
Tang Band 25-302s
Crossover Designs and Measurements Provided by Vance Dickason

#269-680 & #269-685 #264-804

The Bravox 3-1/2" speakers are great for use in a very small home theater system. They were originally used in a well-reviewed high-end 5-piece satellite system. Each driver will work great in a box of ~.05 cu. ft. sealed, yielding an F3 of roughly 145 Hz, making it great for blending with a small subwoofer. A set of 5 home theater speakers using these drivers will blow away any of the mass market "theater-in-a-box" systems for a fraction of the price!

2-way Satellite Speaker

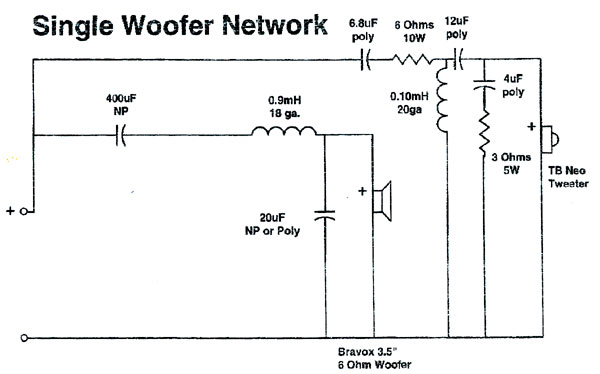

Crossover for a 2-way design using the Bravox 6 ohm woofer, and the Tang Band 25-332s:

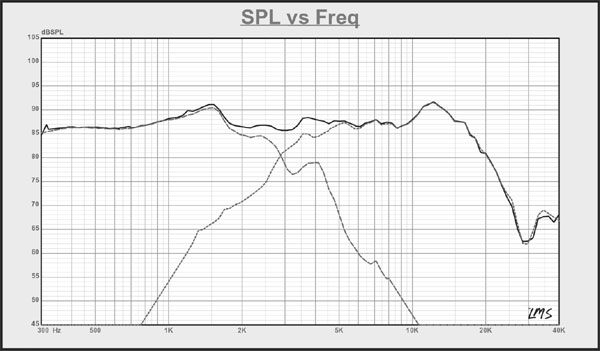

Resultant frequency response:



2-way MTM Center or Front Speaker

Crossover for a 2-way MTM design using two Bravox 12 ohm woofers, and the Tang Band 25-332s:

Resultant frequency response:
